HMAC-SHA256 Webhook Signatures: Implementation Guide

Without webhook signature verification, attackers can forge requests to trigger unauthorized actions. HMAC-SHA256 is the industry standard for solving this. This guide covers implementation—from cryptographic foundations to production-ready code. For broader security guidance, see our webhook security best practices.

What is HMAC-SHA256?

HMAC (Hash-based Message Authentication Code) is a cryptographic algorithm that combines a secret key with a message to produce a unique signature. SHA256 refers to the specific hash function used—SHA-256 from the SHA-2 family.

The formula looks like this:

Every major programming language provides built-in HMAC functions. What matters are these properties:

1. Deterministic: The same key and message always produce the same signature
2. Irreversible: You cannot derive the key or original message from the signature
3. Collision-resistant: It's computationally infeasible to find two different messages that produce the same signature
4. Key-dependent: Without the secret key, an attacker cannot forge a valid signature

Why Webhook Signature Verification Matters

Webhook endpoints are public URLs. Without verification, attackers can forge payments, trigger unauthorized actions, or inject malicious data. Signature verification ensures only requests signed with your shared secret are processed, and detects any payload tampering in transit. For a comparison with JWT and mTLS, see webhook authentication methods compared.

How Webhook Signing Works (Sender Side)

The signing process:

1. Serialize the webhook payload (typically as JSON)
2. Compute the HMAC-SHA256 signature using the shared secret
3. Include the signature in a request header
4. Send the HTTP request to your endpoint

Node.js Signing Implementation

const crypto = require('crypto');

function signWebhookPayload(payload, secret) {
  const timestamp = Math.floor(Date.now() / 1000);
  const payloadString = JSON.stringify(payload);

  // Create the signed payload string (timestamp + payload)
  const signedPayload = `${timestamp}.${payloadString}`;

  // Generate HMAC-SHA256 signature
  const signature = crypto
    .createHmac('sha256', secret)
    .update(signedPayload)
    .digest('hex');

  return {
    signature: `t=${timestamp},v1=${signature}`,
    timestamp,
    body: payloadString
  };
}

// Usage
const payload = { event: 'order.completed', orderId: '12345' };
const secret = 'whsec_your_webhook_secret_here';
const signed = signWebhookPayload(payload, secret);

// Send webhook with headers
// 'X-Webhook-Signature': signed.signature

Python Signing Implementation

import hmac
import hashlib
import json
import time

def sign_webhook_payload(payload: dict, secret: str) -> dict:
    timestamp = int(time.time())
    payload_string = json.dumps(payload, separators=(',', ':'))

    # Create the signed payload string
    signed_payload = f"{timestamp}.{payload_string}"

    # Generate HMAC-SHA256 signature
    signature = hmac.new(
        secret.encode('utf-8'),
        signed_payload.encode('utf-8'),
        hashlib.sha256
    ).hexdigest()

    return {
        'signature': f"t={timestamp},v1={signature}",
        'timestamp': timestamp,
        'body': payload_string
    }

# Usage
payload = {'event': 'order.completed', 'orderId': '12345'}
secret = 'whsec_your_webhook_secret_here'
signed = sign_webhook_payload(payload, secret)

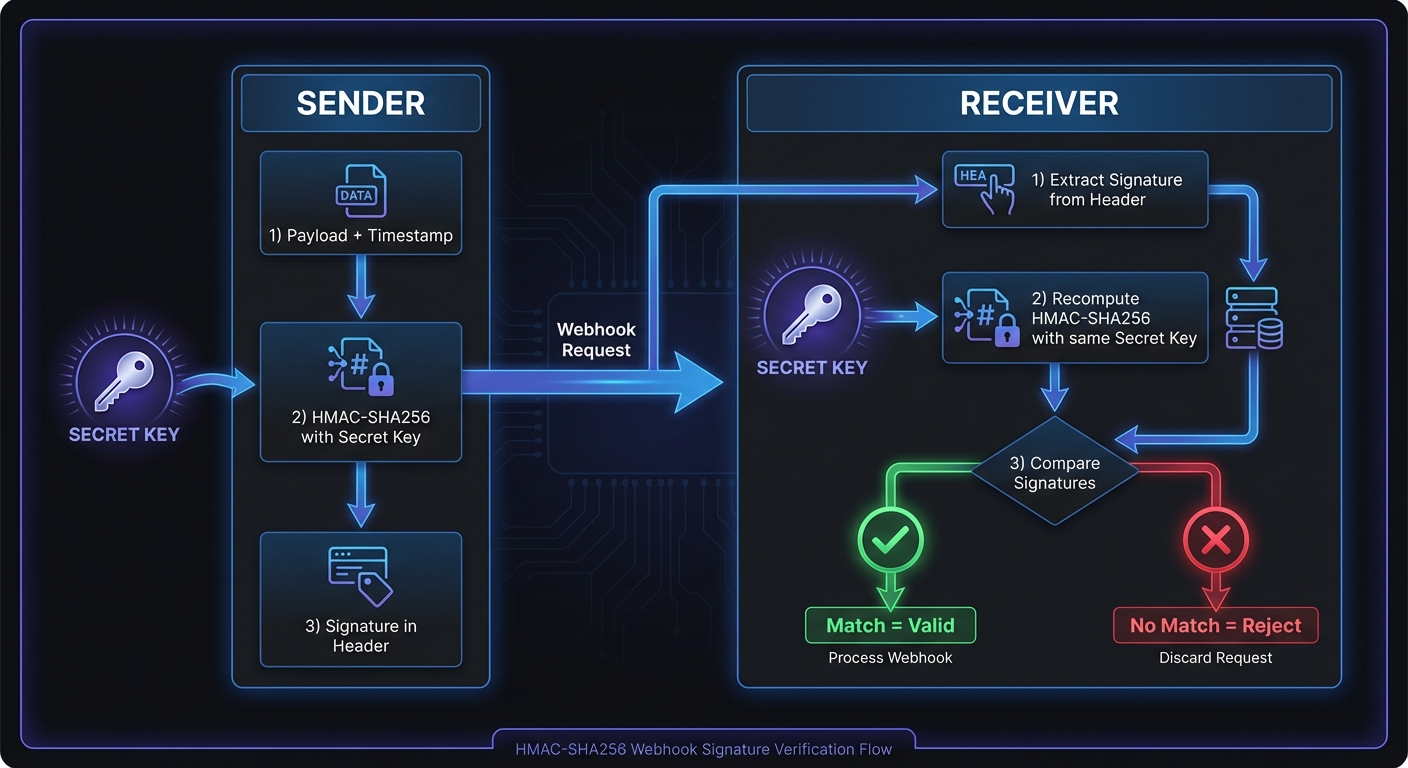

How Verification Works (Receiver Side)

Reverse the signing process:

1. Extract the signature and timestamp from the header
2. Reconstruct the signed payload string using the timestamp and raw request body
3. Compute the expected signature using your copy of the shared secret
4. Compare your computed signature with the received signature
5. Validate the timestamp to prevent replay attacks

Node.js Verification Implementation

const crypto = require('crypto');

function verifyWebhookSignature(payload, signature, secret, toleranceSeconds = 300) {
  // Parse the signature header
  const elements = signature.split(',');
  const timestamp = elements.find(e => e.startsWith('t='))?.slice(2);
  const receivedSig = elements.find(e => e.startsWith('v1='))?.slice(3);

  if (!timestamp || !receivedSig) {
    throw new Error('Invalid signature format');
  }

  // Check timestamp tolerance (prevent replay attacks)
  const currentTime = Math.floor(Date.now() / 1000);
  if (Math.abs(currentTime - parseInt(timestamp)) > toleranceSeconds) {
    throw new Error('Timestamp outside tolerance window');
  }

  // Reconstruct the signed payload
  const signedPayload = `${timestamp}.${payload}`;

  // Compute expected signature
  const expectedSig = crypto
    .createHmac('sha256', secret)
    .update(signedPayload)
    .digest('hex');

  // Timing-safe comparison
  const isValid = crypto.timingSafeEqual(
    Buffer.from(receivedSig, 'hex'),
    Buffer.from(expectedSig, 'hex')
  );

  if (!isValid) {
    throw new Error('Signature verification failed');
  }

  return true;
}

// Express.js middleware example
app.post('/webhooks', express.raw({ type: 'application/json' }), (req, res) => {
  const signature = req.headers['x-webhook-signature'];
  const secret = process.env.WEBHOOK_SECRET;

  try {
    verifyWebhookSignature(req.body.toString(), signature, secret);
    const event = JSON.parse(req.body);
    // Process the verified webhook
    res.status(200).send('OK');
  } catch (err) {
    console.error('Webhook verification failed:', err.message);
    res.status(401).send('Invalid signature');
  }
});

Python Verification Implementation

import hmac
import hashlib
import time

def verify_webhook_signature(
    payload: str,
    signature: str,
    secret: str,
    tolerance_seconds: int = 300
) -> bool:
    # Parse the signature header
    elements = dict(e.split('=', 1) for e in signature.split(','))
    timestamp = elements.get('t')
    received_sig = elements.get('v1')

    if not timestamp or not received_sig:
        raise ValueError('Invalid signature format')

    # Check timestamp tolerance
    current_time = int(time.time())
    if abs(current_time - int(timestamp)) > tolerance_seconds:
        raise ValueError('Timestamp outside tolerance window')

    # Reconstruct the signed payload
    signed_payload = f"{timestamp}.{payload}"

    # Compute expected signature
    expected_sig = hmac.new(
        secret.encode('utf-8'),
        signed_payload.encode('utf-8'),
        hashlib.sha256
    ).hexdigest()

    # Timing-safe comparison
    if not hmac.compare_digest(received_sig, expected_sig):
        raise ValueError('Signature verification failed')

    return True

# Flask example
from flask import Flask, request

@app.route('/webhooks', methods=['POST'])
def handle_webhook():
    signature = request.headers.get('X-Webhook-Signature')
    secret = os.environ['WEBHOOK_SECRET']

    try:
        verify_webhook_signature(request.data.decode(), signature, secret)
        event = request.get_json()
        # Process the verified webhook
        return 'OK', 200
    except ValueError as e:
        return f'Invalid signature: {e}', 401

Timing-Safe Comparison: Why It Matters

Use crypto.timingSafeEqual (Node.js) or hmac.compare_digest (Python), not naive string comparison like ===.

A naive comparison returns false immediately on the first mismatched character. Attackers can measure response times to learn the correct signature byte-by-byte, then forge valid signatures. Constant-time comparison always takes the same duration regardless of where mismatches occur, eliminating this timing side channel.

Common Implementation Mistakes

Using the parsed JSON instead of raw body: HMAC is computed over the exact bytes sent. If you parse the JSON and re-serialize it, whitespace or key ordering differences will cause verification to fail. Always compute signatures over the raw request body.

Incorrect encoding: Ensure consistent UTF-8 encoding for both the payload and secret. Encoding mismatches are a common source of verification failures.

Missing timestamp validation: Without checking timestamps, attackers can replay captured webhooks indefinitely. Enforce a reasonable tolerance window (5 minutes typical). See our guides for verifying webhooks in Node.js and verifying webhooks in Python.

Logging secrets or signatures: Never log your webhook secrets or received signatures. These could be exploited if logs are compromised.

Why SHA256 Over SHA1

SHA-1 has known theoretical weaknesses and demonstrated collision attacks. The cryptographic community has moved to SHA-256 as the minimum standard. SHA-256 provides 256-bit output versus SHA-1's 160-bit, offering better security margins with no performance penalty.

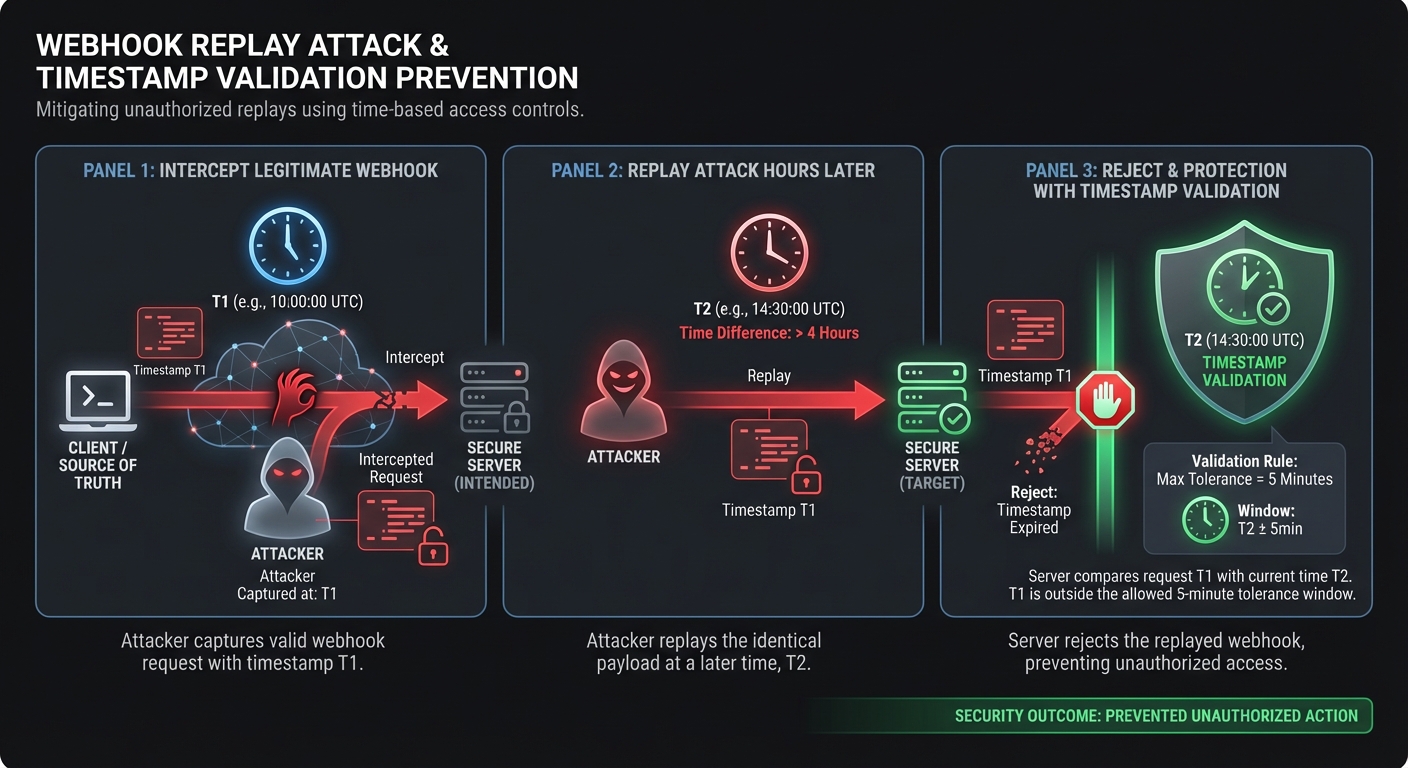

Replay Attack Prevention with Timestamps

Including a timestamp in the signed payload provides:

1. Freshness: Reject webhooks with timestamps too far in the past or future
2. Uniqueness: Identical payloads produce different signatures at different times

A 5-minute tolerance window accommodates clock skew and network delays while limiting replay windows. For additional protection, store processed webhook IDs and reject duplicates. See Stripe's pattern.

Secret Rotation Best Practices

Rotate secrets periodically for security hygiene and immediately if compromised:

1. Generate a new secret in your webhook provider's dashboard
2. Update your application to accept signatures from both old and new secrets
3. Wait for the provider to sign with the new secret
4. Verify webhooks arrive with new signatures
5. Remove the old secret from your application

During rotation, verify with each configured secret, succeeding if any match.

Hook Mesh: Secure Webhook Delivery Built In

Every webhook delivered through Hook Mesh includes HMAC-SHA256 signatures automatically, with timestamp inclusion, proper header formatting, and secure secret management. Our dashboard provides one-click secret rotation, signature debugging tools, and detailed delivery logs for troubleshooting verification issues.

Conclusion

HMAC-SHA256 provides strong, well-understood security when implemented correctly. Key points: use the raw request body, implement timing-safe comparison, validate timestamps, and handle secret rotation. Before going live, review our production security checklist.
