Twilio Webhooks: Complete Integration Guide

Twilio webhooks notify your application of SMS delivery, incoming calls, WhatsApp messages, and call status changes. This guide covers configuration, security validation, and best practices for reliable integrations.

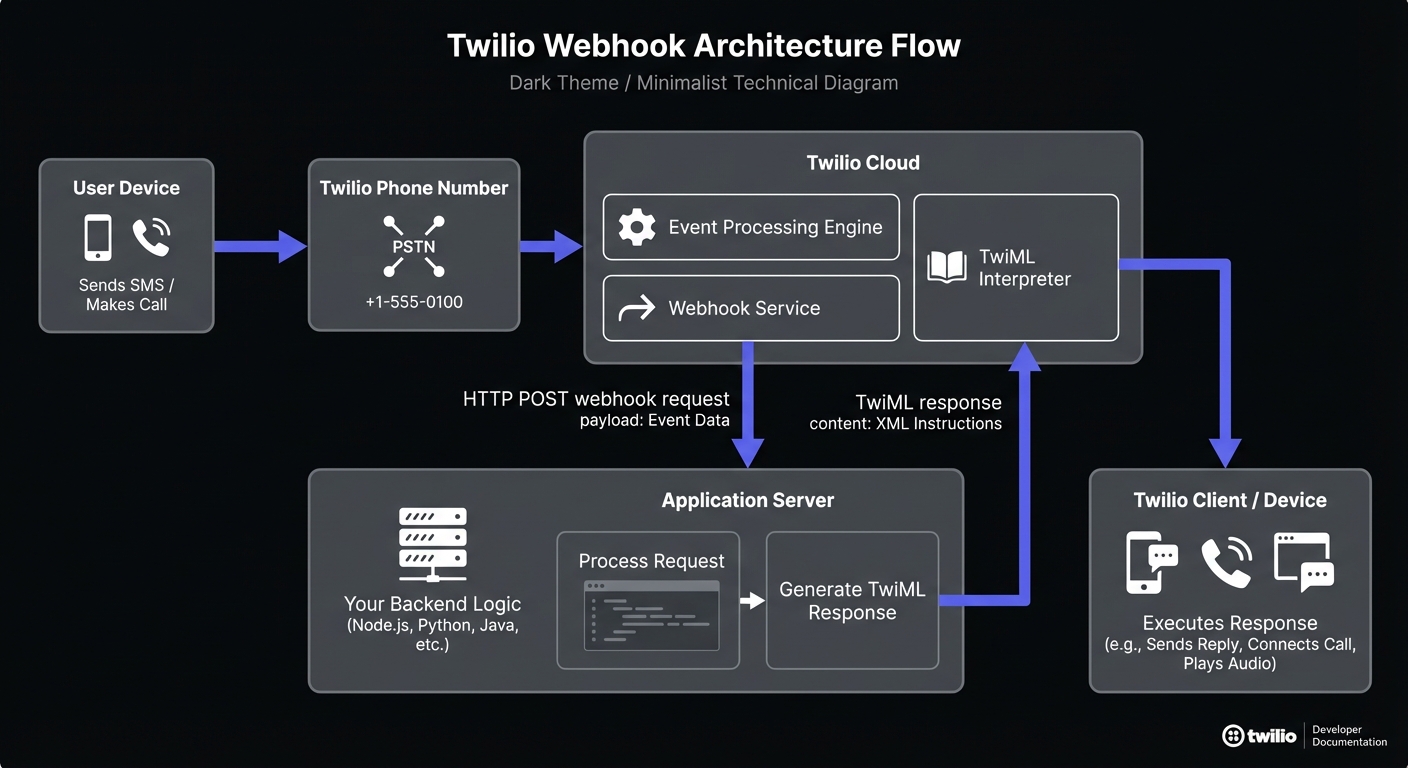

Twilio webhook architecture showing the flow from user interaction through Twilio cloud to your application server and back

Understanding Twilio Webhook Types

Each Twilio communication channel has specific webhook events for real-time interaction with your application.

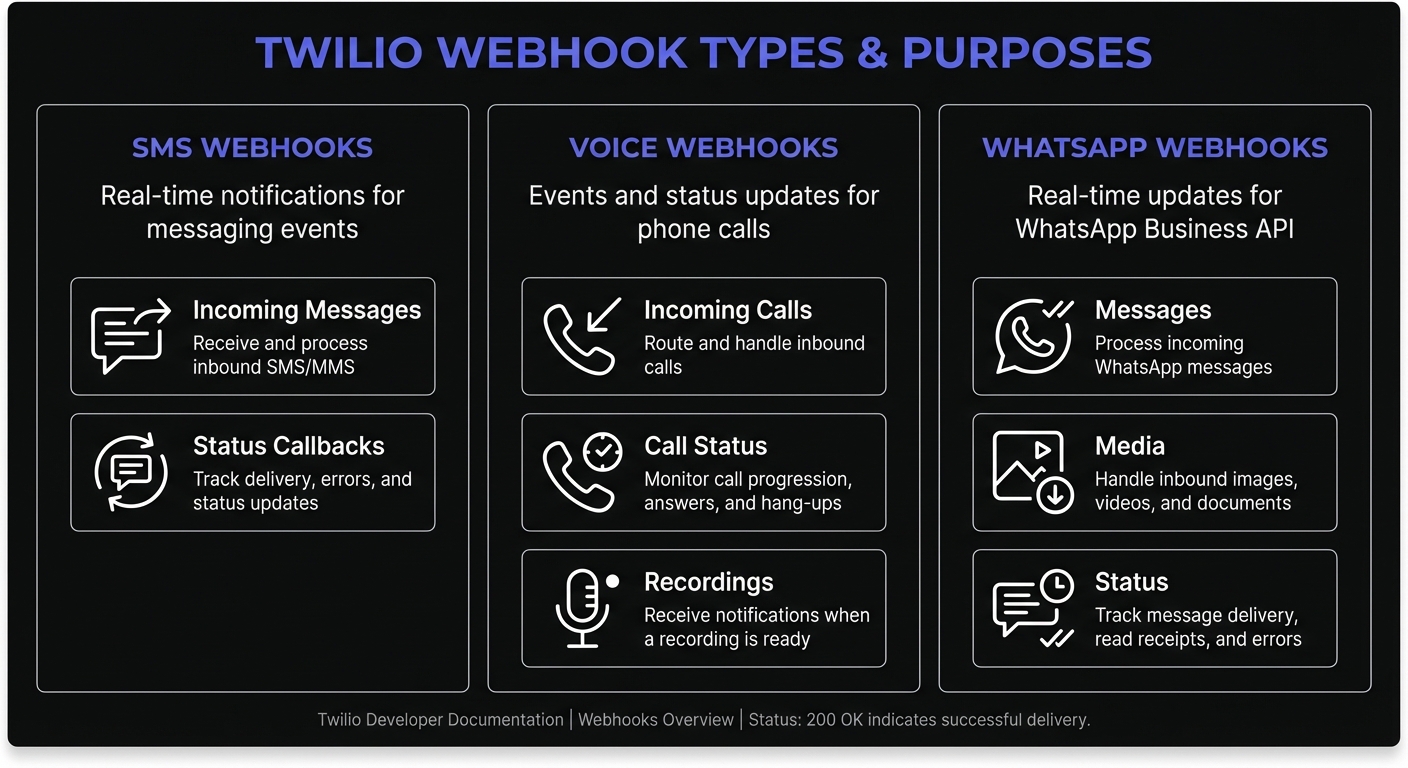

Overview of Twilio webhook types for SMS, Voice, and WhatsApp channels

SMS Status Callbacks

When you send an SMS through Twilio, status callbacks inform you about the message lifecycle:

queued: Message is queued for sending
sent: Message sent to the carrier
delivered: Carrier confirmed delivery
undelivered: Message could not be delivered
failed: Message failed to send

Use callbacks to track delivery rates, trigger follow-up actions, and maintain communication logs.

Voice Webhooks

Voice webhooks handle both inbound and outbound call events:

Incoming call webhooks: Triggered when someone calls your Twilio number
Status callbacks: Report call progress (ringing, in-progress, completed, busy, failed)
Recording callbacks: Notify when call recordings are ready
Transcription callbacks: Deliver speech-to-text results

WhatsApp Webhooks

Twilio's WhatsApp Business API uses webhooks for:

Incoming messages: Text, images, documents, and location shares
Message status updates: Sent, delivered, read, and failed statuses
Template message responses: User replies to outbound templates

Configuring Webhook URLs

Setting Up SMS Webhooks

Configure SMS webhooks in the Twilio Console or programmatically when sending messages:

const twilio = require('twilio');
const client = twilio(accountSid, authToken);

const message = await client.messages.create({
  body: 'Your order has shipped!',
  from: '+15551234567',
  to: '+15559876543',
  statusCallback: 'https://webhooks.hookmesh.com/v1/twilio/sms-status'
});

Setting Up Voice Webhooks

Configure voice webhook URLs on your Twilio phone number:

const number = await client.incomingPhoneNumbers('PNXXXXXXX').update({
  voiceUrl: 'https://webhooks.hookmesh.com/v1/twilio/voice-incoming',
  voiceMethod: 'POST',
  statusCallback: 'https://webhooks.hookmesh.com/v1/twilio/voice-status',
  statusCallbackMethod: 'POST'
});

WhatsApp Configuration

WhatsApp webhooks are configured through the Twilio Console in the Messaging section, pointing to your webhook endpoint for the WhatsApp-enabled sender.

WhatsApp messages use the same webhook format as SMS, with two key differences:

To and From use WhatsApp addresses: whatsapp:+15551234567
Media messages include MediaUrl0, MediaContentType0 fields for images, audio, and PDFs (up to 16MB)

app.post('/webhooks/twilio/whatsapp', validateTwilioRequest, (req, res) => {
  const { From, Body, NumMedia, MediaUrl0, MediaContentType0 } = req.body;

  // Handle media attachments
  if (parseInt(NumMedia) > 0) {
    console.log(`Received media: ${MediaContentType0} at ${MediaUrl0}`);
    processMediaMessage(MediaUrl0, MediaContentType0);
  }

  res.type('text/xml').send('<Response></Response>');
});

Configuring Fallback URLs

Twilio supports fallback URLs for error recovery. If your primary webhook returns an error or times out, Twilio automatically retries with your fallback endpoint:

const number = await client.incomingPhoneNumbers('PNXXXXXXX').update({
  voiceUrl: 'https://primary.example.com/voice',
  voiceFallbackUrl: 'https://backup.example.com/voice',
  smsUrl: 'https://primary.example.com/sms',
  smsFallbackUrl: 'https://backup.example.com/sms'
});

Fallback requests include ErrorCode and ErrorUrl parameters identifying what failed, enabling targeted debugging.

Testing Webhooks Locally

Twilio requires a publicly accessible URL, but you can use tunneling tools during development.

Using ngrok

ngrok creates a public URL that forwards to your local server:

# Start your local server on port 3000
node server.js

# In another terminal, create a tunnel
ngrok http 3000

ngrok provides a URL like https://abc123.ngrok.io - use this as your webhook URL in the Twilio Console. The Twilio CLI also supports automatic tunneling:

# Automatically creates ngrok tunnel for localhost URLs
twilio phone-numbers:update +15551234567 \
  --sms-url="http://localhost:3000/webhooks/sms"

Alternative Testing Tools

webhook.site: Instantly captures incoming webhooks for inspection without running any code
RequestBin: Similar to webhook.site, useful for debugging payload structure
TwiML Bins: Twilio's serverless option - host TwiML responses without your own server

Request Validation: Securing Your Webhooks

Validate incoming webhooks to ensure they originate from Twilio and weren't tampered with. Twilio signs every request using your Auth Token. See our webhook security best practices guide for comprehensive authentication approaches.

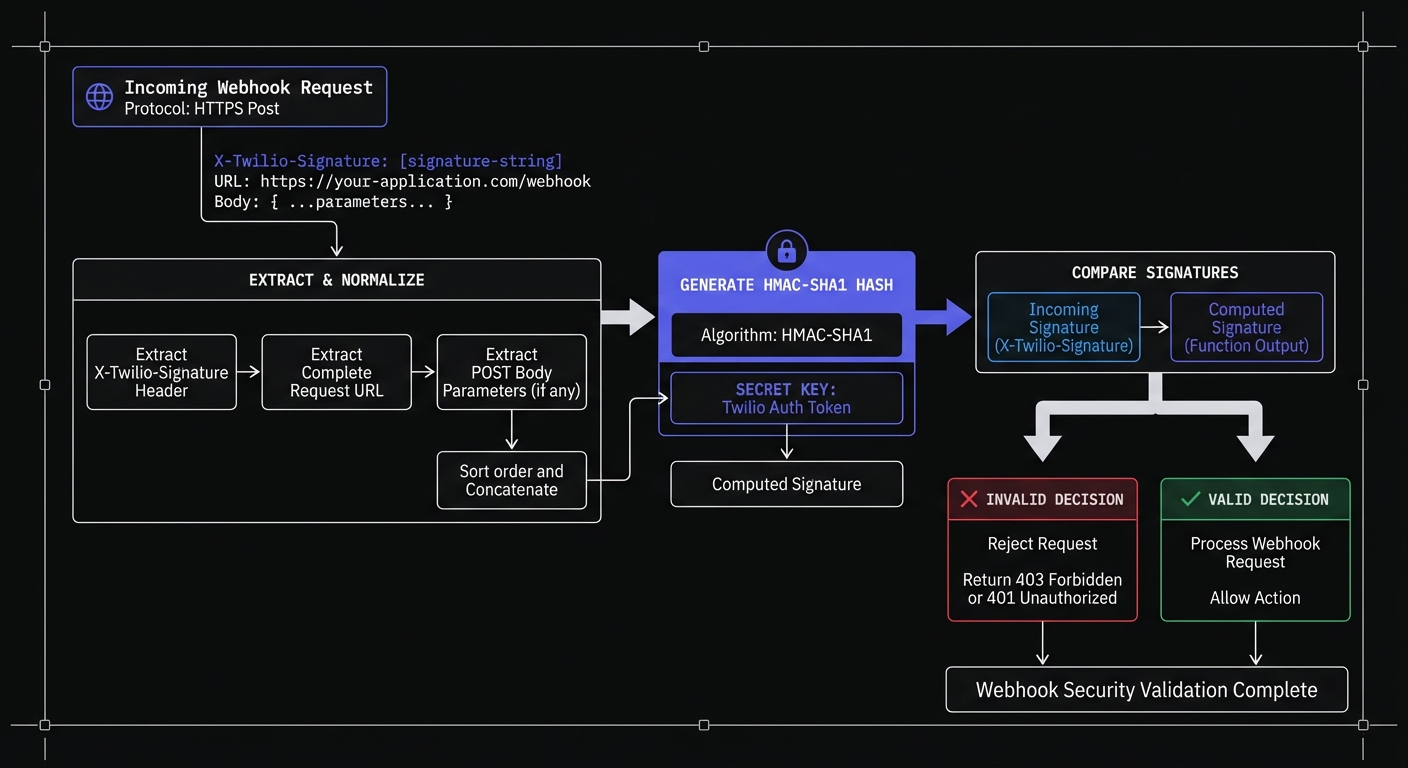

Twilio signature validation process using X-Twilio-Signature header and HMAC-SHA1

Twilio uses HMAC-SHA1 to sign requests. The signature combines your webhook URL, sorted request parameters, and your Auth Token as the secret key. Always use the official Twilio SDK for validation rather than implementing your own - the algorithm handles edge cases like empty parameter values that can break custom implementations.

Node.js Signature Validation

Twilio's SDK makes validation straightforward. See verifying webhooks in Node.js for details:

const twilio = require('twilio');
const express = require('express');
const app = express();

// Use raw body for signature validation
app.use('/webhooks/twilio', express.urlencoded({ extended: false }));

const validateTwilioRequest = (req, res, next) => {
  const twilioSignature = req.headers['x-twilio-signature'];
  const authToken = process.env.TWILIO_AUTH_TOKEN;
  const url = `${req.protocol}://${req.get('host')}${req.originalUrl}`;

  const isValid = twilio.validateRequest(
    authToken,
    twilioSignature,
    url,
    req.body
  );

  if (!isValid) {
    console.error('Invalid Twilio signature detected');
    return res.status(403).send('Forbidden');
  }

  next();
};

app.post('/webhooks/twilio/sms', validateTwilioRequest, (req, res) => {
  const { From, Body, MessageSid } = req.body;

  console.log(`Received SMS from ${From}: ${Body}`);

  // Process the message asynchronously
  processIncomingSms(req.body).catch(console.error);

  // Respond immediately
  res.type('text/xml').send('<Response></Response>');
});

Python Signature Validation

from flask import Flask, request, abort
from twilio.request_validator import RequestValidator
from functools import wraps
import os

app = Flask(__name__)

def validate_twilio_request(f):
    @wraps(f)
    def decorated(*args, **kwargs):
        validator = RequestValidator(os.environ['TWILIO_AUTH_TOKEN'])

        url = request.url
        post_vars = request.form.to_dict()
        signature = request.headers.get('X-Twilio-Signature', '')

        if not validator.validate(url, post_vars, signature):
            abort(403)

        return f(*args, **kwargs)
    return decorated

@app.route('/webhooks/twilio/sms', methods=['POST'])
@validate_twilio_request
def handle_sms():
    from_number = request.form.get('From')
    body = request.form.get('Body')
    message_sid = request.form.get('MessageSid')

    # Queue for async processing
    process_sms_async.delay(from_number, body, message_sid)

    return '<Response></Response>', 200, {'Content-Type': 'text/xml'}

TwiML Responses for Voice Webhooks

Voice webhooks expect TwiML (Twilio Markup Language) responses that instruct Twilio how to handle the call:

const VoiceResponse = require('twilio').twiml.VoiceResponse;

app.post('/webhooks/twilio/voice', validateTwilioRequest, (req, res) => {
  const twiml = new VoiceResponse();
  const { From, CallStatus } = req.body;

  // Greet the caller
  twiml.say({ voice: 'alice' }, 'Welcome to Acme Support.');

  // Gather input
  const gather = twiml.gather({
    numDigits: 1,
    action: '/webhooks/twilio/voice/menu',
    method: 'POST'
  });
  gather.say('Press 1 for sales, press 2 for support.');

  // Fallback if no input
  twiml.say('We didn\'t receive any input. Goodbye.');

  res.type('text/xml').send(twiml.toString());
});

Common Use Cases

SMS Delivery Receipts

Track message delivery for critical notifications:

app.post('/webhooks/twilio/sms-status', validateTwilioRequest, async (req, res) => {
  const { MessageSid, MessageStatus, ErrorCode } = req.body;

  await db.messages.update({
    where: { twilioSid: MessageSid },
    data: {
      status: MessageStatus,
      errorCode: ErrorCode || null,
      updatedAt: new Date()
    }
  });

  if (MessageStatus === 'failed' || MessageStatus === 'undelivered') {
    await alerting.notify(`SMS delivery failed: ${MessageSid}`);
  }

  res.sendStatus(200);
});

Incoming Message Handling

Build conversational experiences by responding to incoming messages:

@app.route('/webhooks/twilio/incoming', methods=['POST'])
@validate_twilio_request
def handle_incoming():
    body = request.form.get('Body', '').strip().lower()
    from_number = request.form.get('From')

    response = MessagingResponse()

    if body == 'status':
        order = get_latest_order(from_number)
        response.message(f'Your order #{order.id} is {order.status}')
    elif body == 'help':
        response.message('Reply STATUS for order updates, STOP to unsubscribe')
    else:
        response.message('Thanks for your message! Reply HELP for options.')

    return str(response), 200, {'Content-Type': 'text/xml'}

Call Status Updates

Monitor call center performance with status callbacks:

app.post('/webhooks/twilio/call-status', validateTwilioRequest, async (req, res) => {
  const { CallSid, CallStatus, CallDuration, From, To } = req.body;

  await analytics.trackCall({
    sid: CallSid,
    status: CallStatus,
    duration: parseInt(CallDuration) || 0,
    from: From,
    to: To,
    timestamp: new Date()
  });

  res.sendStatus(200);
});

Best Practices for Twilio Webhook Integration

1. Always Validate Requests

Never skip signature validation in production. Attackers easily spoof requests without verifying the X-Twilio-Signature header.

2. Respond Quickly

Twilio expects responses within 15 seconds. Voice webhook delays cause awkward silences for callers. Return immediately and process asynchronously:

app.post('/webhooks/twilio/sms', validateTwilioRequest, (req, res) => {
  // Respond immediately
  res.type('text/xml').send('<Response></Response>');

  // Process asynchronously
  messageQueue.add('process-sms', req.body);
});

3. Handle Retries Gracefully

Twilio retries failed deliveries. Implement idempotent handlers using MessageSid or CallSid to prevent duplicates:

const processedEvents = new Set(); // Use Redis in production

app.post('/webhooks/twilio/status', validateTwilioRequest, async (req, res) => {
  const eventKey = `${req.body.MessageSid}-${req.body.MessageStatus}`;

  if (processedEvents.has(eventKey)) {
    return res.sendStatus(200);
  }

  processedEvents.add(eventKey);
  await processStatusUpdate(req.body);

  res.sendStatus(200);
});

4. Use HTTPS Endpoints

Twilio requires HTTPS for webhook URLs in production. Ensure your SSL certificates are valid and properly configured. Self-signed certificates will fail - use certificates from trusted providers.

5. Configure Connection Timeouts

Twilio's default timeout is 15 seconds. For voice webhooks, long delays create awkward silences. Override timeouts per-request using URL query parameters:

https://example.com/webhooks/voice?ConnectionTimeout=5&Timeout=10

ConnectionTimeout: Maximum time to establish connection (default: 5s)
Timeout: Maximum time for complete request/response cycle (default: 15s)

6. Log Everything

Comprehensive logging helps debug issues and provides an audit trail:

app.post('/webhooks/twilio/*', (req, res, next) => {
  console.log({
    path: req.path,
    timestamp: new Date().toISOString(),
    body: req.body,
    headers: {
      'x-twilio-signature': req.headers['x-twilio-signature'],
      'i-twilio-idempotency-token': req.headers['i-twilio-idempotency-token']
    }
  });
  next();
});

7. Use Twilio's Idempotency Token

Twilio includes the I-Twilio-Idempotency-Token header in retried requests. Use this token alongside MessageSid for more robust duplicate detection:

app.post('/webhooks/twilio/status', validateTwilioRequest, async (req, res) => {
  const idempotencyToken = req.headers['i-twilio-idempotency-token'];
  const eventKey = idempotencyToken || `${req.body.MessageSid}-${req.body.MessageStatus}`;

  if (await redis.exists(`processed:${eventKey}`)) {
    return res.sendStatus(200);
  }

  await redis.set(`processed:${eventKey}`, '1', 'EX', 86400);
  await processStatusUpdate(req.body);

  res.sendStatus(200);
});

Scaling Twilio Webhooks with Hook Mesh

Hook Mesh handles infrastructure complexity as your communication volume grows:

Automatic retries: Never lose delivery receipts or incoming messages
Request queuing: Buffer high-volume traffic during peak messaging
Signature validation: Built-in verification before forwarding
Real-time monitoring: Track delivery rates, latency, and error patterns
Failover routing: Automatically route to backup endpoints if primary is unavailable

Conclusion

Twilio webhooks are fundamental to building responsive communication applications. Whether tracking SMS deliveries, handling calls with TwiML, or managing WhatsApp, proper implementation keeps your application synchronized with real-world events.

Focus on essentials: validate requests, respond quickly, process asynchronously. With Hook Mesh handling delivery logistics, scale from your first to your millionth message confidently. Explore more platforms in our guides on SendGrid email and Slack webhooks, or browse our platform integrations hub.

Twilio Webhooks: Complete Integration Guide
